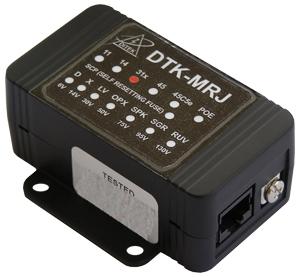

DTK-MRJPOE Power Over Ethernet Power/Data Surge Protection

Power Over Ethernet Power/Data Surge Protection
DITEK’s MRJPOE protects circuits that use state-of-the-art Power Over Ethernet connections. This point of use surge protector can be installed either at the equipment end or ahead of injectors or midspan devices. The DTK-MRJPOE is ideal surge protection for PoE cameras, Network Video Recorders, Voice over Internet phones, and Access Control.

• Protects two pairs of 5V data and two pairs of 48V power
• RJ45 connection with external grounding screw
• Multi-stage, SAD technology, hybrid design provides the best possible protection
• Protection is matched to the different Power and Data circuit pair voltages
• Complies with IEEE Std. 802.3af for PoE
• Pinout is in accordance with “Alternative 2”, but can also be used on MDI/MDI-X systems with properly wired RJ45 connectors
• Available as a single device or 12-Port, 2U Rack Mount (DTK-RM12POE)
• Ten Year Limited Warranty

Agency Approvals: UL497B
Pinout: Data – Pins 1,2,3,6
Power – Pins 4,5,7,8
(IEEE 802.3af Alternative 2)
Connection Method: RJ45 In/Out, 8 pins
Max Continuous Current: Data – 0.3A
Power – 1.0A
Power Dissipation: 3,000W/pair (10/1000µs impulse)
Protection Modes: Line-Ground (All)
Operating Temperature: -40°F - 158°F (-40°C - 70°C)
Maximum Humidity: 95% non-condensing
Dimensions: 1.7” x 3.0” x 1.2”
(43mm x 76mm x 30mm)
Weight: 4oz (113g)
Housing: ABS
