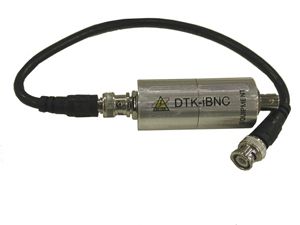

DTK-iBNC Series: Coaxial Line Surge Protector

DTK-iBNC Series: Coaxial Line Surge Protector
DITEK’s iBNC inline surge protectors are designed to protect externally-mounted cameras where a dedicated ground connection is unavailable. The iBNC diverts transient surges through the coaxial shielding, protecting the video feed without introducing ground loops. Solid performance and easy installation make the iBNC a favorite of CCTV integrators.

• DTK-iBNC28 - Fixed cameras
• DTK-iBNC68 - Coaxitron cameras

• Protects fixed or Coaxitron (PTZ) camera video feeds
• Small footprint makes installation easy
• Recommended for applications where AC power is already protected and ground is unavailable
• Warranty: Ten Year Limited Warranty

Connection Method: BNC (Female) In/Out
Band Pass Range: 0Hz – 2GHz
Standing Wave Ratio (SWR): 1.2:1
Insertion Loss: <.3dB @ 2GHz
Protection Mode: Center Pin – Shield
Dimensions: 3.6” D x 1.1” diameter (91 x 28mm)
Included Male-Male patch cord: 12” (305mm)
Weight: 2.5oz (71g)
Housing: Aluminum
